# Mastering Vent Stack Sizing and Wet Vent Requirements Under California Plumbing Code

Understanding vent stack sizing and wet vent requirements under California Plumbing Code is critical for C-36 licensing success. These drainage and venting systems concepts directly impact public health and safety by preventing trap seal loss, siphoning, and backflow conditions. This comprehensive guide breaks down the essential calculations, tables, and code requirements you need to master.

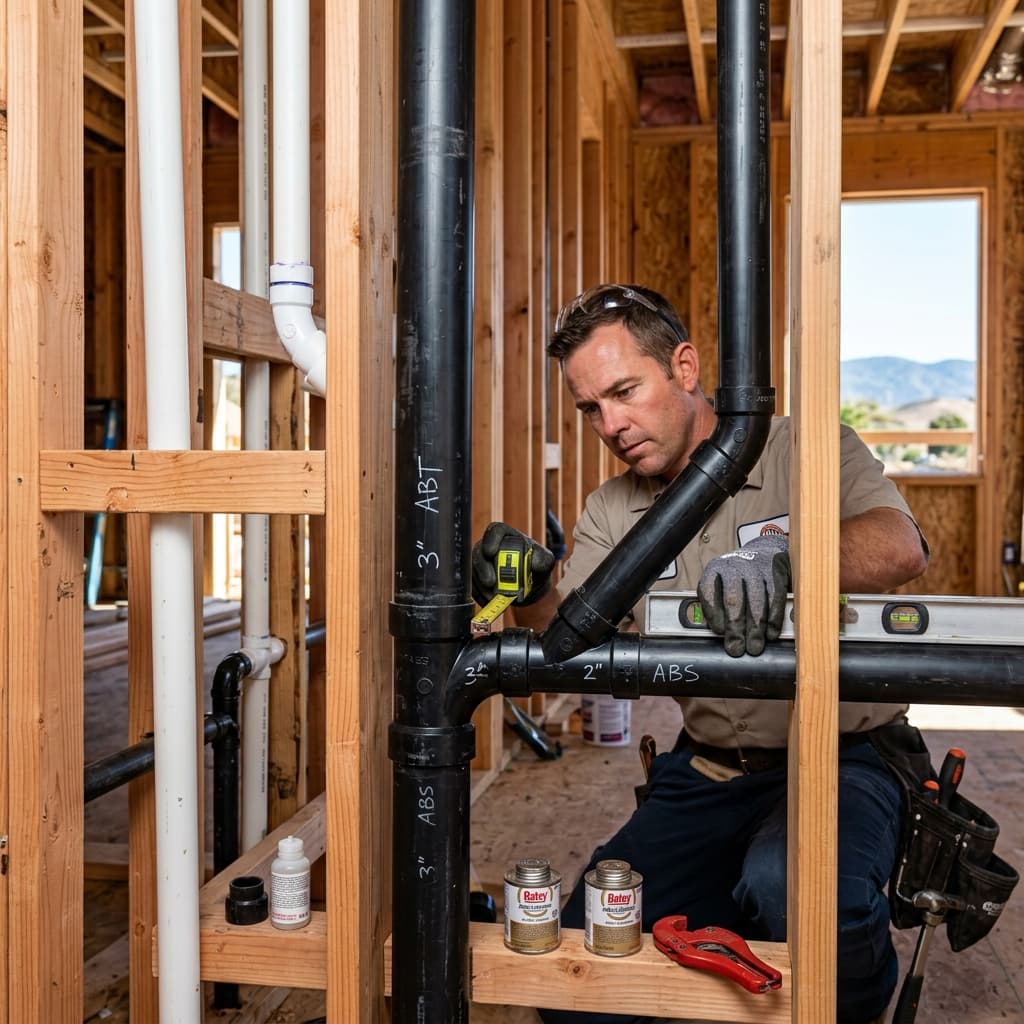

Why Vent Stack Sizing Matters in California Plumbing Code Drainage

The California Plumbing Code (CPC) establishes strict guidelines for vent stack sizing because undersized or oversized vents create dangerous system failures. When vent pipes are too small, they cannot adequately relieve air pressure, causing negative pressure that breaks trap seals. Conversely, oversized vents waste materials and reduce system efficiency.

Proper vent stack sizing accomplishes three critical objectives:

1. Maintains trap seal integrity - Prevents siphoning that exposes inhabitants to sewer gases
2. Relieves air pressure - Allows drainage system to function without airlock conditions
3. Protects public health - Prevents backflow and contamination of potable water supplies

According to CPC Section 308.1, all drainage systems must be equipped with a vent system designed to maintain atmospheric pressure within the drainage system and prevent trap seal loss.

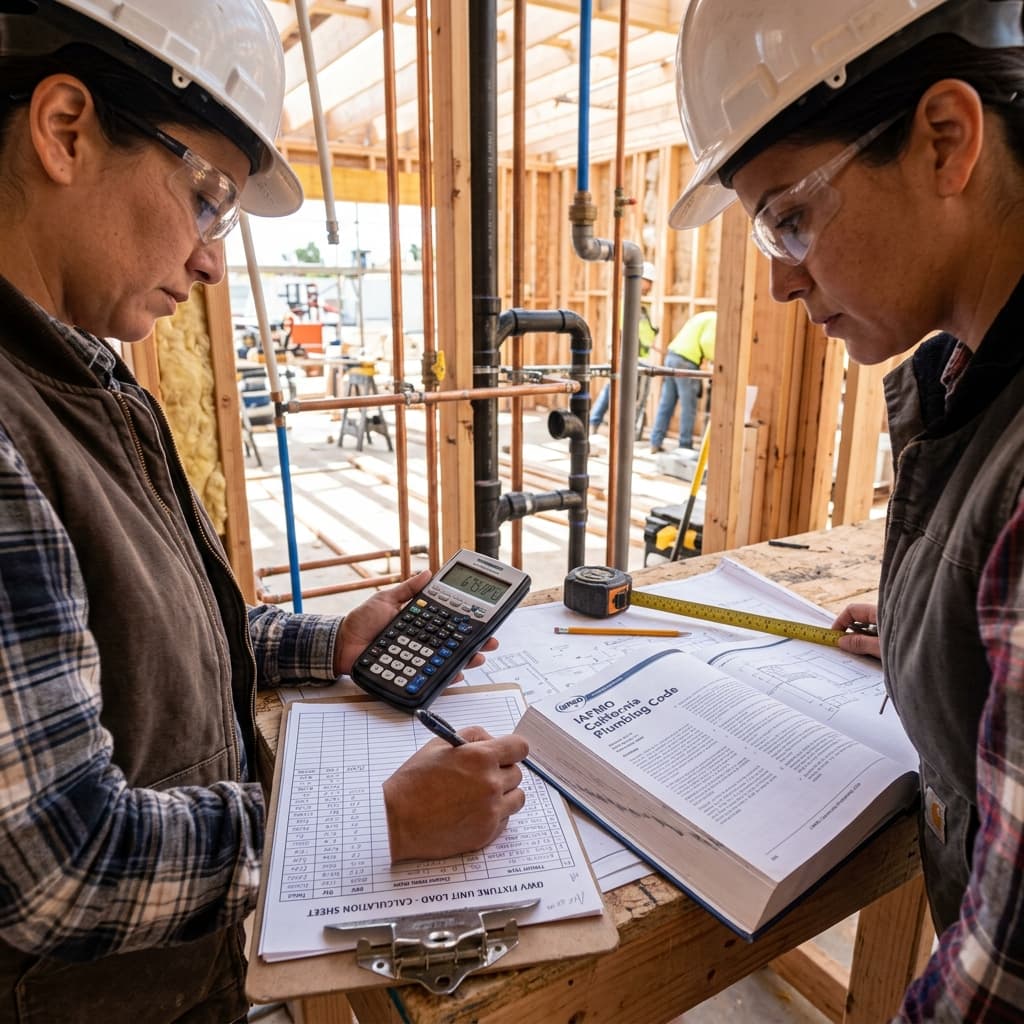

Understanding Fixture Unit Load Calculations

Before calculating vent stack sizes, you must determine the total drainage fixture unit (DFU) load. This is the foundation of all sizing calculations in California Plumbing Code drainage systems.

DFU Values for Common Fixtures

The CPC Table 422.1 lists drainage fixture unit values for standard plumbing fixtures:

• Toilet: 4 DFU
• Bathtub/Shower: 2 DFU
• Lavatory: 1 DFU
• Kitchen sink: 2 DFU
• Floor drain: 3 DFU
• Washing machine: 2 DFU

When you have multiple fixtures of the same type, simply multiply the DFU value by the number of fixtures. For example, a residential building with 3 toilets, 3 lavatories, 1 bathtub, and 1 kitchen sink has a total DFU load of:

(3 × 4) + (3 × 1) + (2) + (2) = 19 DFU

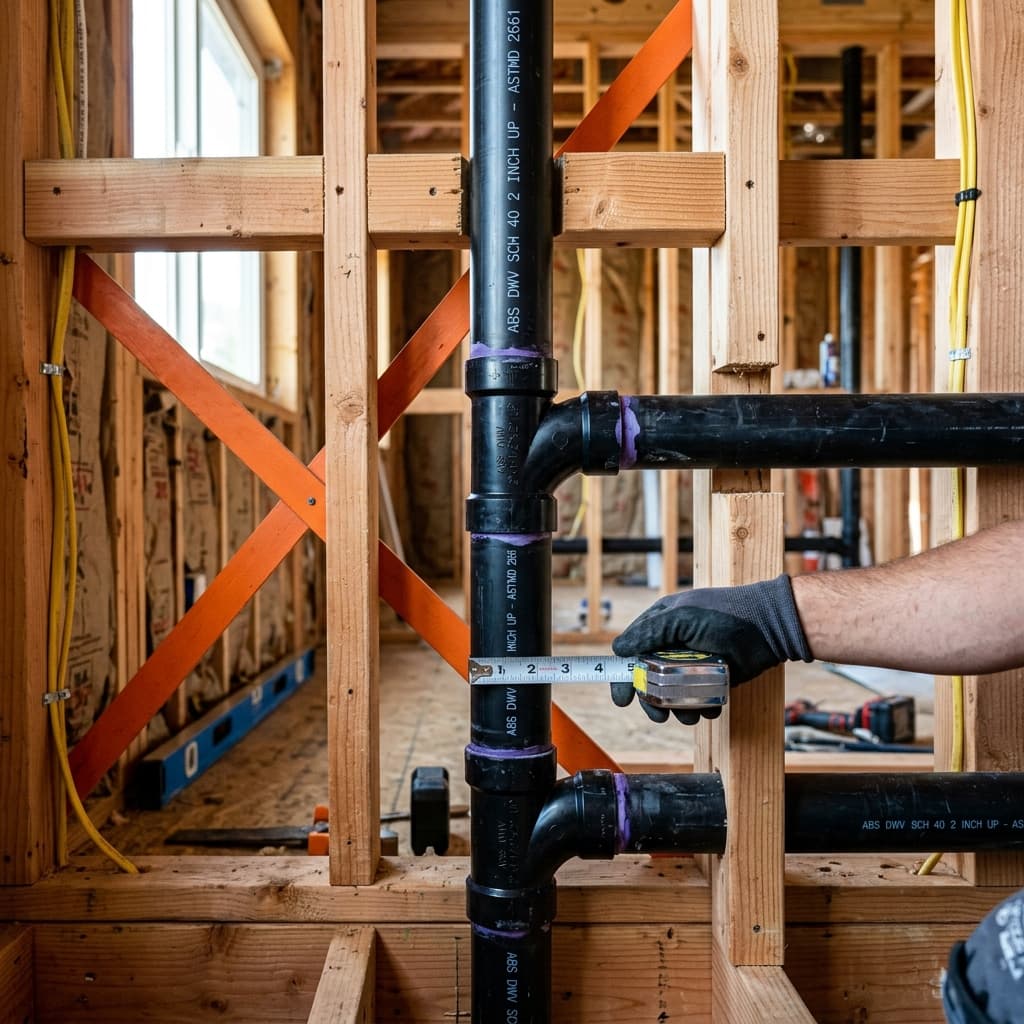

CPC Section 308: Vent Stack Sizing Tables

CPC Section 308.1 through 308.6 provides the technical requirements for sizing individual vent stacks, branch vents, vent stacks, and circuit vents.

Primary Vent Stack Sizing (CPC Table 308.1)

The main vent stack must be sized based on:

1. Total fixture unit load served by the vent
2. Maximum developed length of the vent pipe

The developed length is the total linear distance of pipe from the lowest connection point to the highest point where the vent exits the building, measured along the centerline of the pipe. Sizing Example:

• Total DFU load: 45 units
• Maximum developed length: 35 feet
• According to CPC Table 308.1, a 3-inch vent stack can handle up to 48 DFU at 35 feet developed length
• Solution: 3-inch vent stack is required

Branch Vent Sizing (CPC Table 308.2)

Branch vents serving individual drainage stacks or groups of fixtures must be sized separately. These typically serve smaller DFU loads over shorter distances.

Common branch vent sizes include 1.25 inches, 1.5 inches, and 2 inches. A 1.5-inch branch vent can typically serve up to 8 DFU with a maximum 25-foot developed length.

Stack Vent Sizing (CPC Table 308.3)

Stack vents are the extension of the main soil or waste stack above the highest fixture connection. These must be sized based on the soil or waste stack diameter and the total DFU load.

Mastering Wet Vent Requirements Under CPC

Wet venting is one of the most frequently tested drainage and venting systems topics on the C-36 exam. A wet vent is a vent pipe that also serves as a drain pipe, combining both functions in a single pipe.

What Qualifies as a Wet Vent?

According to CPC Section 310, a wet vent must meet all of these conditions:

1. Serves only fixtures on the same floor - No vertical separation between wet-vented fixtures
2. Installed at proper slope - Minimum 1/4-inch drop per 12 inches of horizontal run
3. Vent connection above the fixture outlet - Prevents drainage from flowing into the vent
4. Sized for both drainage and venting - Must handle DFU load plus vent requirements

Allowable Wet Vent Configurations

The CPC permits wet venting in three primary configurations:

#### 1. Combination Drain and Vent (CPC Section 310.1)

A single pipe serves as both the drain from an upper fixture and the vent for lower fixtures. This is the most common wet vent arrangement in residential construction.

Typical Example:

• Lavatory drain (upper fixture) becomes the vent for a toilet (lower fixture)
• The 1.5-inch drain from the lavatory serves as a combination drain-vent
• The toilet is vented through this same 1.5-inch pipe
• Minimum slope maintained throughout the combination drain-vent

#### 2. Common Vent (CPC Section 310.2)

A single vent serves two fixtures with no drainage passing through it. Both fixtures connect to the common vent separately from their drains.

Key Distinction: Unlike a combination drain-vent, a common vent carries no drainage—only air for venting purposes.

#### 3. Island Fixture Vent (CPC Section 310.3)

Island fixtures (like kitchen islands with sinks) present unique challenges because they cannot connect to traditional vent stacks. The CPC permits island vents when:

• Located above the flood level rim of the fixture
• Submerged in the drain line with an air admittance valve (if approved locally)
• Connected to a loop or circuit vent system

Critical Wet Vent Restrictions

Understanding what cannot be wet vented is equally important for exam success:

1. Toilets cannot be common-vented with other fixtures except under specific arrangements
2. Bedpans and clinical sinks cannot be wet vented
3. Fixtures in different rooms generally cannot share a wet vent
4. Wet vents cannot serve fixtures more than two stories apart in mixed-use buildings
5. Kitchens and bathrooms have additional restrictions on wet venting combinations

Sizing Wet Vent Pipes

Wet vent sizing differs from standard vent sizing because the pipe must accommodate both drainage and venting functions.

Drainage Sizing Component

The drain portion must be sized according to CPC Table 422.1 using fixture unit loads and pipe slope requirements.

Venting Sizing Component

The vent portion must be sized according to CPC Table 308 for the fixtures being vented.

Critical Rule: The pipe diameter selected must satisfy both drainage and venting requirements. You cannot downsize based on drainage needs if the vent requirement demands a larger diameter.

Wet Vent Sizing Example

Scenario:

• 1.5-inch lavatory drain (2 DFU) serves as common vent
• Toilet (4 DFU) connects below and is vented by this pipe
• Maximum developed vent length: 20 feet

Analysis:

• Drain requirement: 2 DFU in 1.5-inch pipe = acceptable (CPC Table 422.1)
• Vent requirement: 4 DFU served over 20 feet = requires minimum 1.5-inch vent (CPC Table 308.2)
• Result: 1.5-inch wet vent meets both requirements ✓

If the vent requirement had demanded a 2-inch pipe while the drain worked in 1.5 inches, you would be required to upsize the entire wet vent to 2 inches.

Common Vent Stack Sizing Mistakes on the C-36 Exam

Test-takers frequently make these critical errors:

Mistake #1: Forgetting to Account for Developed Length

Many applicants use vent stack tables without calculating the full developed length. Remember to include:

• Horizontal runs
• Vertical rises
• All changes in direction (measured along centerline)
• Distance to building exit

Underestimating developed length leads to undersized vents that fail in service.

Mistake #2: Confusing Common Vents with Wet Vents

Common vent: Serves fixtures with separate drains; vent carries only air Wet vent: One pipe carries both drainage and venting functions

These have different sizing requirements and allowable fixture combinations.

Mistake #3: Applying Residential Rules to Commercial Systems

Commercial drainage and venting systems have different requirements, especially regarding:

• Fixture unit values (different for commercial fixtures)
• Wet vent allowances (more restrictive)
• Stack vent sizing (larger buildings require different calculations)

Always verify whether the exam question specifies residential or commercial construction.

Mistake #4: Neglecting Trap Arm Slope Requirements

Proper slope of trap arms and wet vents is not optional—it's mandatory per CPC Section 307.4. Incorrectly sloped pipes cause:

• Solids accumulation
• Trap seal loss
• System failures

A common exam question presents a wet vent diagram and asks whether the slope is adequate. Always check the 1/4-inch drop per 12 inches minimum slope.

Step-by-Step Vent Stack Sizing Process

Follow this proven methodology to solve any vent stack sizing problem on the C-36 exam:

Step 1: Identify All Fixtures and Calculate DFU Load

List every fixture served by the vent stack, look up the DFU value for each, and total them.

Step 2: Determine Developed Length

Measure the total linear distance from the lowest vent connection to the highest point where the vent exits the building.

Step 3: Consult the Appropriate CPC Table

Match your DFU load and developed length to the correct sizing table:

• CPC Table 308.1 (main vent stack)
• CPC Table 308.2 (branch vents)
• CPC Table 308.3 (stack vents)

Step 4: Select the Minimum Required Diameter

Choose the smallest pipe diameter that satisfies both DFU load and developed length requirements.

Step 5: Verify No Special Restrictions Apply

Check whether the configuration involves wet venting or other special arrangements that might impose additional requirements.

Step 6: Document Your Selection

Write down the pipe diameter, material, and the code section justifying your choice.

Special Considerations for Island Fixture Venting

Island sinks and fixtures present unique challenges because they cannot connect to traditional vent stacks. The CPC permits three solutions:

Solution 1: Loop Vent System

The drain pipe loops upward before descending to the main stack, with a vent connection at the top of the loop. This loop vent must be:

• Sized per CPC Table 308
• Sloped properly (1/4-inch minimum drop per 12 inches)
• Located above the fixture flood level rim

Solution 2: Air Admittance Valve (AAV)

Some jurisdictions accept mechanically-operated air admittance valves that allow air entry during drainage but remain sealed during normal conditions. Note: Check local jurisdiction requirements, as not all areas accept AAVs.

Solution 3: Submerged Vent Below Trap Seal

Less commonly used, this arrangement requires special engineering and is subject to local approval.

Materials and Construction Standards for Vent Stacks

CPC Section 308.7 specifies acceptable materials for vent stacks:

• PVC pipe - Most common in modern construction
• ABS pipe - Acceptable in most jurisdictions
• Cast iron - Traditional material, still acceptable
• Copper tubing - Acceptable but more expensive
• PEX/PEP - Newer materials with growing acceptance

All vent materials must meet CPC material standards and be properly supported and secured per CPC Section 308.9.

Key CPC Sections for Vent Stack Sizing and Wet Venting

• CPC Section 308.1: Individual vent sizing requirements and CPC Table 308.1
• CPC Section 308.2: Branch vent sizing with CPC Table 308.2
• CPC Section 308.3: Stack vent sizing with CPC Table 308.3
• CPC Section 310.1: Combination drain and vent requirements
• CPC Section 310.2: Common vent requirements and limitations
• CPC Section 310.3: Island fixture vent arrangements
• CPC Section 307.4: Trap arm and wet vent slope requirements (1/4-inch drop per 12 inches minimum)

Exam Tips for Success

1. Memorize the three wet vent types: Combination drain-vent, common vent, and island vent. Understand the specific restrictions for each.

1. Always check developed length: This is the most commonly missed factor in sizing calculations. Re-read the question to ensure you've identified the full vent path.

1. Practice with CPC tables: Bring actual CPC tables to your study sessions and practice locating information quickly. On the actual exam, you'll have limited time.

1. Watch for slope requirements: Any time a wet vent is involved, verify that proper slope is mentioned or shown in the diagram.

1. Distinguish between types: Don't confuse common vents with combination drain-vents. They have different sizing rules.

Conclusion

Mastering vent stack sizing calculations and wet vent requirements is essential for passing the C-36 drainage and venting systems section. By understanding the fundamental principles in California Plumbing Code drainage requirements, practicing with actual CPC tables, and avoiding common mistakes, you'll develop confidence in solving these problems during the exam.

Remember that these requirements exist to protect public health by maintaining proper drainage system function and preventing trap seal loss that could expose building occupants to sewer gases. Every calculation you perform on the C-36 exam directly relates to real safety concerns in actual plumbing installations.

Review the code sections regularly, work through practice problems systematically, and you'll master this critical component of the exam.
