# CPC Section 403 Drainage System Sizing: Complete Fixture Unit Load Calculations and Pipe Sizing Tables for C-36 Exam Success

Introduction

CPC Section 403 drainage system sizing is one of the most heavily tested topics on the California C-36 plumbing exam. This section establishes the fundamental requirements for calculating drainage loads and determining appropriate pipe sizes for sanitary drainage systems. Mastery of fixture unit load calculations and proper application of drainage pipe sizing tables is non-negotiable for exam success.

Whether you're designing a residential home, small commercial building, or multi-story structure, understanding how to calculate fixture unit loads and select proper drainage piping will directly impact your ability to pass Part 2 of the C-36 examination.

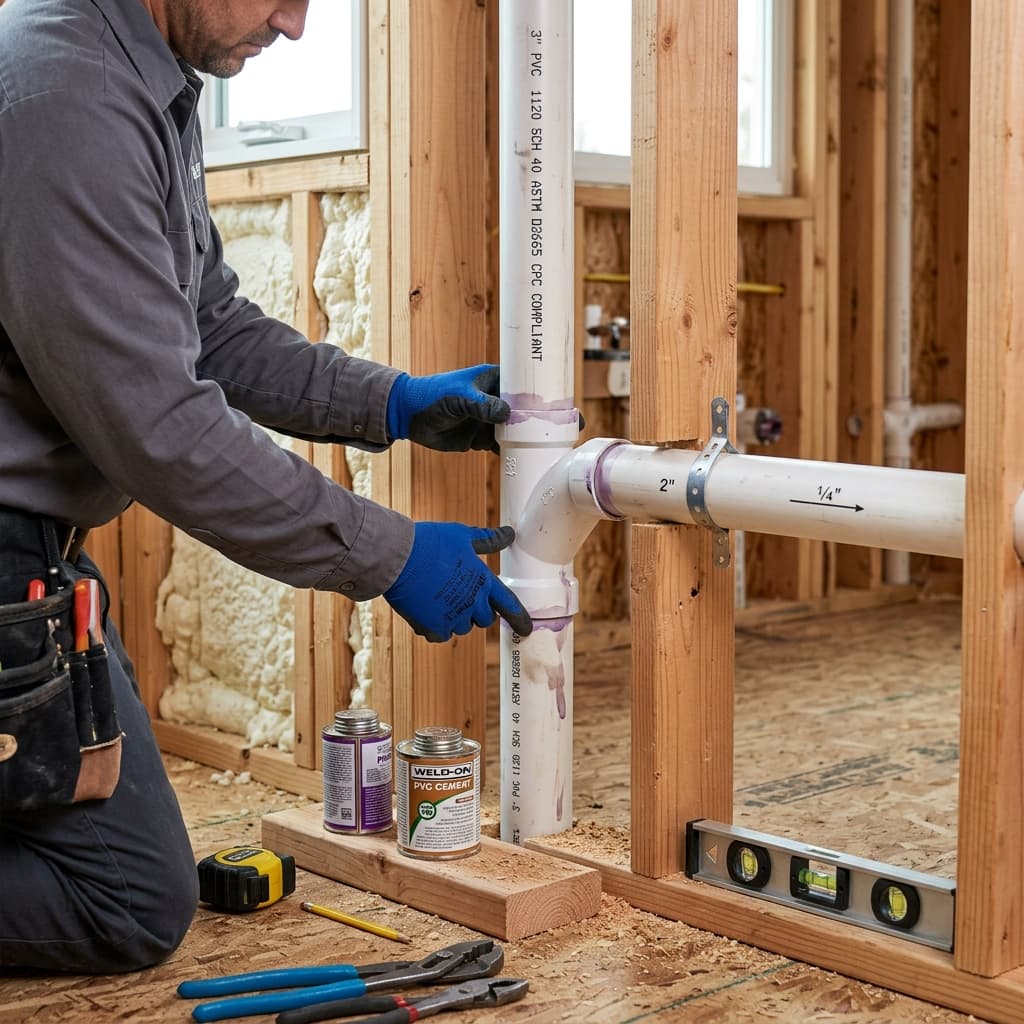

Understanding CPC Section 403 Drainage Fundamentals

What is CPC Section 403?

CPC Section 403 addresses the sizing requirements for drainage systems, including:

• Sanitary drainage piping design and capacity calculations
• Fixture unit load determination based on plumbing fixture type
• Drainage pipe sizing tables correlating units to pipe diameter
• Stack sizing for vertical drainage systems
• Horizontal branch sizing for drainage lines
• Velocity and gradient requirements to maintain system efficiency

The purpose of Section 403 is to ensure that drainage systems are sized large enough to handle expected wastewater flows while maintaining proper drainage velocity and preventing system backups or failures.

Why Section 403 Matters for C-36 Exam Takers

Section 403 calculations appear in multiple forms on the C-36 Part 2 exam:

• Direct calculation questions asking you to size specific drainage lines
• Scenario-based problems requiring fixture unit totals for building designs
• Table-reading competency testing your ability to apply pipe sizing charts
• Code compliance verification ensuring you understand minimum requirements

Approximately 15-20% of Part 2 questions directly involve Section 403 principles, making this section critically important for achieving a passing score.

Fixture Unit Load Calculations: The Foundation

Understanding Fixture Units

A fixture unit (FU) is a standardized measure of the drainage load produced by a plumbing fixture. Rather than measuring actual wastewater volume, fixture units represent the rate at which a fixture drains during normal use.

The California Plumbing Code bases fixture unit values on:

• Frequency of use - How often the fixture typically drains
• Duration of discharge - How long water flows during typical use
• Volume of discharge - Quantity of water expelled per use cycle

Standard Fixture Unit Values (CPC Table 422.1)

One of the most important tables for C-36 exam preparation is CPC Table 422.1, which lists fixture unit values for common plumbing fixtures:

| Fixture Type | Fixture Units | |---|---| | Water closet (toilet) | 4 | | Lavatory (sink) | 1 | | Bathtub | 2 | | Shower stall | 2 | | Kitchen sink | 2 | | Laundry tub | 2 | | Floor drain | 1 | | Urinal (1-inch) | 4 | | Bidet | 1 | | Drinking fountain | 1 |

Exam Tip: Memorize the most common fixture unit values, especially water closets (4 FU), sinks/lavatories (1 FU), and bathtubs/showers (2 FU). These appear in nearly every calculation problem.

Calculating Total Fixture Unit Loads

The process for calculating total fixture unit loads is straightforward but requires accuracy:

1. Identify all fixtures served by the drainage line or stack
2. Assign fixture unit values from CPC Table 422.1
3. Sum all fixture units for the specific drainage segment
4. Apply any reduction factors if applicable (discussed below)
5. Use the total to determine pipe sizing from the appropriate table

Example Calculation: A residential bathroom includes:

• 1 water closet = 4 FU
• 1 lavatory = 1 FU
• 1 bathtub = 2 FU
• Total = 7 fixture units

Fixture Unit Load Combinations

When designing branch drainage lines that serve multiple fixtures, you must account for simultaneous use probabilities. CPC Section 403 recognizes that not all fixtures drain simultaneously.

Key principle: Different drainage segments may have different loads depending on which fixtures they serve:

• Toilet branch = only 4 FU (toilet alone)
• Bathroom lavatory branch = only 1 FU (lavatory alone)
• Bathtub branch = only 2 FU (tub alone)
• Common branch serving all three = 7 FU

Drainage Pipe Sizing Tables: CPC Section 403

Understanding Pipe Sizing Tables

CPC Section 403 provides critical pipe sizing tables that correlate fixture unit loads to required pipe diameters. These tables account for:

• Drainage velocity requirements (minimum 2 feet per second)
• Minimum slopes (typically 1/4 inch per foot for horizontal drains)
• System efficiency (preventing grease buildup and blockages)
• Safety factors (accounting for partial blockages)

Sanitary Drainage Piping Size Table (CPC Table 403.2)

CPC Table 403.2 is the primary sizing table for sanitary drainage systems:

| Fixture Units | Pipe Diameter | |---|---| | 1-2 | 1.25 inches | | 3-6 | 1.5 inches | | 7-16 | 2 inches | | 17-32 | 2.5 inches | | 33-50 | 3 inches | | 51-100 | 4 inches | | 101-200 | 5 inches | | 200+ | 6 inches |

Exam Tip: This table appears in virtually every C-36 exam. Practice reading it quickly and accurately under time pressure.

Stack Sizing for Vertical Drains (CPC Table 403.3)

Vertical stacks require separate consideration because gravity flow is more efficient. CPC Table 403.3 provides stack sizing requirements:

| Fixture Units | 1.5" Stack | 2" Stack | 2.5" Stack | 3" Stack | 4" Stack | |---|---|---|---|---|---| | Maximum FU | 4 | 16 | 32 | 50 | 256 |

Stacks can handle more fixture units than horizontal drains of equivalent diameter because water flows freely downward without friction resistance.

Common Exam Scenarios Using Sizing Tables

Scenario 1: Branch Drain Sizing

• Problem: A bathroom has 2 lavatories (1 FU each) and 1 bathtub (2 FU). What size branch drain is required?
• Calculation: 1 + 1 + 2 = 4 FU total
• Table lookup: 4 FU requires minimum 1.5-inch pipe (CPC Table 403.2)
• Answer: 1.5-inch drainage pipe

Scenario 2: Stack Sizing

• Problem: A 3-story building has 10 fixtures per floor draining to a main 3-inch stack. Is the stack adequate?
• Calculation: 10 fixtures × 3 floors = 30 total FU (assuming average 1 FU per fixture)
• Table lookup: 3-inch stack capacity = 50 FU (CPC Table 403.3)
• Answer: Yes, 3-inch stack is adequate

Gradient and Velocity Requirements

Minimum Drainage Slope

CPC Section 403 requires minimum slopes to maintain adequate drainage velocity:

Standard requirement: Minimum 1/4 inch of drop per foot of horizontal run (1/4" per 12") Mathematical representation: 1:48 slope ratio Common slope alternatives:

• 1/8 inch per foot = 1:96 ratio (acceptable for pipes 3 inches or larger)
• 1/2 inch per foot = 1:24 ratio (steeper, sometimes used)

Exam Tip: When no slope is specified in a problem, assume the standard 1/4 inch per foot minimum requirement.

Minimum Velocity Requirements

The California Plumbing Code establishes minimum velocity standards to prevent sediment accumulation:

• Minimum velocity: 2 feet per second (FPS)
• Maximum velocity: 10 feet per second (FPS)

Velocities below 2 FPS allow solids to settle; velocities above 10 FPS may cause excessive noise and pipe erosion.

Calculating Pipe Sizes for Real-World Applications

Single-Story Residential Application

Building scenario:

• 3-bedroom, 2-bathroom home
• Master bath: 1 water closet (4 FU), 1 bathtub (2 FU), 1 lavatory (1 FU)
• Guest bath: 1 water closet (4 FU), 1 shower (2 FU), 1 lavatory (1 FU)
• Kitchen: 1 kitchen sink (2 FU)

Branch drain calculations:

• Master bath toilet branch = 4 FU → 1.5-inch pipe
• Master bath tub/shower branch = 2 FU → 1.25-inch pipe
• Master bath lavatory branch = 1 FU → 1.25-inch pipe
• Guest bath toilet branch = 4 FU → 1.5-inch pipe
• Guest bath shower/lavatory branch = 3 FU → 1.5-inch pipe
• Kitchen sink branch = 2 FU → 1.25-inch pipe

Main stack calculation:

• Total building FU = 4+2+1+4+2+1+2 = 16 FU
• Main stack requirement = 2-inch minimum (per CPC Table 403.3)

Multi-Story Commercial Application

Building scenario: 5-story office building with 12 fixtures per floor Calculation:

• Per-floor load = 12 fixtures × 1 FU average = 12 FU
• Total building load = 12 FU × 5 floors = 60 FU
• Main stack requirement = 4-inch pipe (can handle up to 256 FU)

Common Mistakes and How to Avoid Them

Mistake #1: Forgetting to Sum All Fixtures on a Line

Many exam candidates size pipes based on individual fixtures rather than total loads.

Correct approach: Always sum ALL fixtures served by the drainage segment before consulting sizing tables.

Mistake #2: Confusing Stack Sizing with Branch Sizing

Vertical stacks have different capacity tables than horizontal branches.

How to avoid: Clearly identify whether you're sizing a vertical stack or horizontal branch before consulting tables.

Mistake #3: Neglecting Reduction Factors

Some jurisdictions allow fixture unit reductions for large buildings using probability calculations, though California's code is conservative.

Safe approach: Use full fixture unit loads unless the problem specifically allows reductions.

Mistake #4: Incorrect Slope Application

Confusing slope ratios or applying inappropriate slopes to different pipe sizes.

Remember: Standard slope is 1/4 inch per foot for most drainage pipes unless otherwise specified.

CPC Section 403 Key Code References for Exam Study

| Code Section | Topic | |---|---| | CPC 403.1 | Drainage piping sizing requirements | | CPC 403.2 | Sanitary drainage pipe sizing table | | CPC 403.3 | Stack sizing table | | CPC 422.1 | Fixture unit values | | CPC 403.5 | Horizontal branch sizing | | CPC 403.6 | Graded sizing of stacks |

Practice Problems for C-36 Exam Preparation

Problem 1: Basic Branch Sizing

A residential fixture branch serves 1 water closet and 1 lavatory. What minimum pipe size is required? Solution:

• Water closet = 4 FU
• Lavatory = 1 FU
• Total = 5 FU
• From CPC Table 403.2: 5 FU requires 1.5-inch pipe
• Answer: 1.5-inch minimum

Problem 2: Stack Sizing

A building has 45 total fixture units draining to a main vertical stack. What minimum stack size is required? Solution:

• Total load = 45 FU
• From CPC Table 403.3: 45 FU requires 3-inch stack
• Answer: 3-inch minimum

Problem 3: Complex Multi-Fixture Branch

A floor has 3 water closets (4 FU each), 4 lavatories (1 FU each), and 2 showers (2 FU each). What size is the main drainage branch? Solution:

• Water closets: 3 × 4 = 12 FU
• Lavatories: 4 × 1 = 4 FU
• Showers: 2 × 2 = 4 FU
• Total = 20 FU
• From CPC Table 403.2: 20 FU requires 2.5-inch pipe
• Answer: 2.5-inch minimum

Final Tips for C-36 Exam Success

1. Memorize CPC Table 422.1 - Fixture unit values for common fixtures
2. Memorize CPC Tables 403.2 and 403.3 - Pipe sizing requirements
3. Practice calculations under time pressure - You'll have limited time per question
4. Always sum ALL fixtures on the line being sized
5. Verify your table lookups - Double-check before finalizing answers
6. Remember the 1/4 inch per foot slope - Default assumption unless specified
7. Distinguish between horizontal and vertical sizing - They use different tables

Conclusion

Mastery of CPC Section 403 drainage system sizing is absolutely essential for C-36 exam success. By thoroughly understanding fixture unit load calculations, properly applying drainage pipe sizing tables, and recognizing common exam scenarios, you'll confidently answer the 15-20% of Part 2 questions that test this critical material.

Focus your preparation on memorizing the standard fixture unit values and pipe sizing tables, then practice repeatedly with varied scenarios until the calculations become second nature. This investment in preparation will pay dividends when you sit for your C-36 examination.
